Best Portable Level 2 EV Charger, 7kw/11kw/22kw

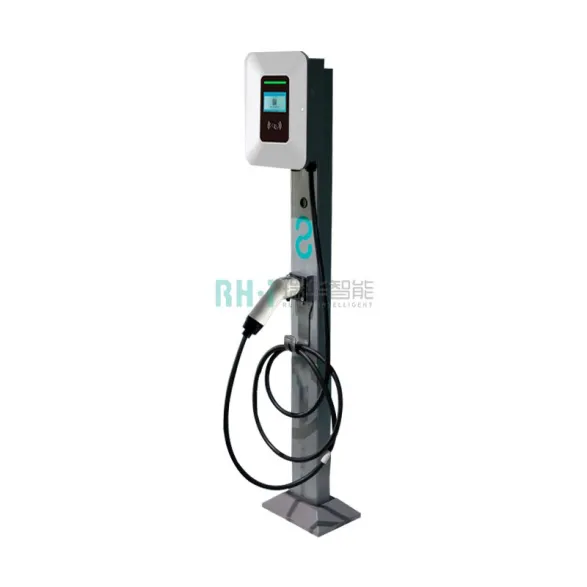

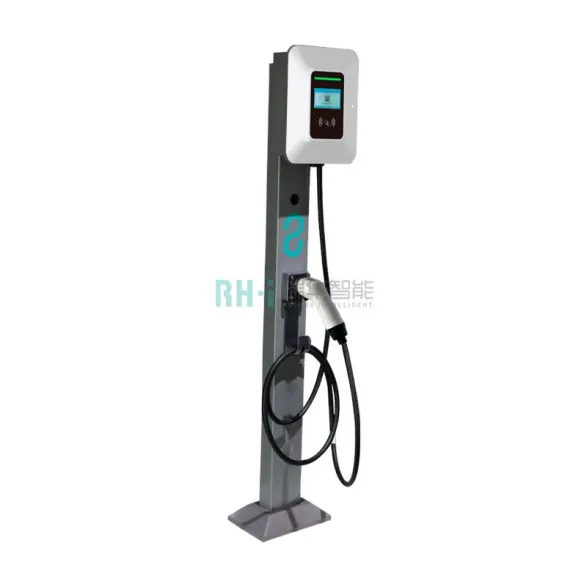

RUIHUA Portable Level 2 EV Charger can be stand on pole-mounted on floor with steel post, It was made by adopting high-quality materials and accessories, choose high-quality electrical components and protection devices to ensure that the safety performance, to meet CE & UL standards and the user’s needs.
It’s design outside is simple and fashion, waterproof design, easy operation, can be installed or suspended on fixed facilities such as walls, backboards, light rods…etc, It is suitable for households, companies, public parking lots, residential district parking lots, large commercial buildings, industrial parks or cities Public charging stations and other places.
7kw/11kw/22kw Portable Level 2 EV Charger Specifications
| Specifications | Model | RHAC7K-X-US / RHAC11K-X-US / RHAC22K-X-US |
| Operating Conditions | Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +70°C | |
| Altitude | 2000m | |
| Humidity | 95% relative humidity | |
| Input | Input Rating | 240Vac, 32A/48A/80A maximum, 50/60 Hz |
| Number of Phases/Wires | L1, L2, PE | |
| Standby Power | <2W (basic model, without LCO module) | |
| Internal RCD | CCID20 | |
| Output | Output Rating | 240Vac, 32A/48A/80A maximum, 50/60 Hz, 7.6kW/11.5kW/19.2kW max |
| Connector | Type 1 (SAE J1772) | |
| Protections | Over Current | Yes |
| Under/Over Voltage | Yes | |
| Short Circuit | Yes | |
| Over Temperature | Yes | |
| Ground Fault | Yes | |
| Output Protection | Yes | |
| User Interface | Status Indicators | Three LED indicators |
| Buttons | Emergency stop button | |
| User Authentication | RFID | |
| LCD Display | 4.3 inch LCD | |
| Network Connection | Network Interface | Ethernet, 4G, Wi-Fi, BT |
| Control Protocol | OCPP 1.6 | |
| Product Dimensions | Dimensions (H x W x D) | 350 x 250 x 122 mm |
Q: Which vehicles are compatible with a portable Level 2 charger?
A: Portable Level 2 chargers are typically compatible with all electric vehicles that use a Type 1 (SAE J1772) or Type 2 (IEC 62196) connector. Please confirm that your vehicle supports these standards.
Q: What type of power supply is required?
A: Portable Level 2 chargers generally require a 220V-240V power supply. Some models may work on 110V, but the charging speed will be slower.
Q: How fast does it charge?
A: Depending on the charger’s power (3.7kW-22kW), a Level 2 charger can provide 20-50 miles of range per hour. Charging speed varies based on the charger’s power rating and your vehicle’s battery capacity.
Q: Is the portable charger waterproof?
A: Most portable chargers come with an IP65 or higher rating, making them suitable for outdoor use. However, it’s recommended to avoid prolonged exposure to extreme weather conditions.
